I/O Connector Pinout (NI 6132/6133)

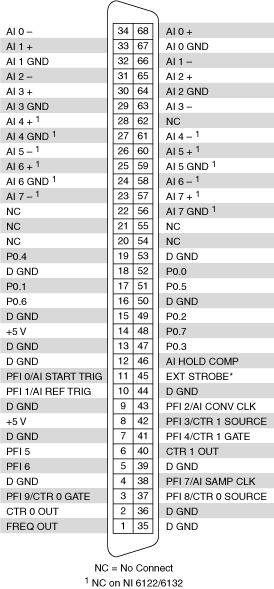

This figure shows the pin assignments for the 68-pin I/O connector on the NI 6132/6133.

For a detailed description of each signal, refer to the I/O Connector Signal Descriptions.
