50-Pin MIO I/O Connector Pinout

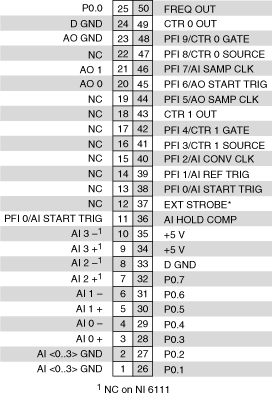

This figure shows the 50-pin I/O connector that is available when you use the SH6850 cable assembly with some 68-pin S Series devices.
 | Note Some hardware accessories may not yet reflect the NI-DAQmx terminal names. If you are using an S Series device in Traditional NI-DAQ (Legacy), refer to the Terminal Name Equivalents table for the Traditional NI-DAQ (Legacy) signal names. |
For a detailed description of each signal, refer to the I/O Connector Signal Descriptions section.
 |
