I/O Connector Pinout (NI 6110/6111)

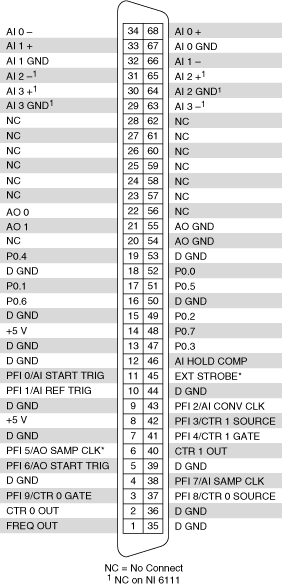

The following figure shows the pin assignments for the 68-pin connector on the NI 6110/6111.
 |
For a detailed description of each signal, refer to the I/O Connector Signal Descriptions.
