Block Diagram (NI 6122/6123)

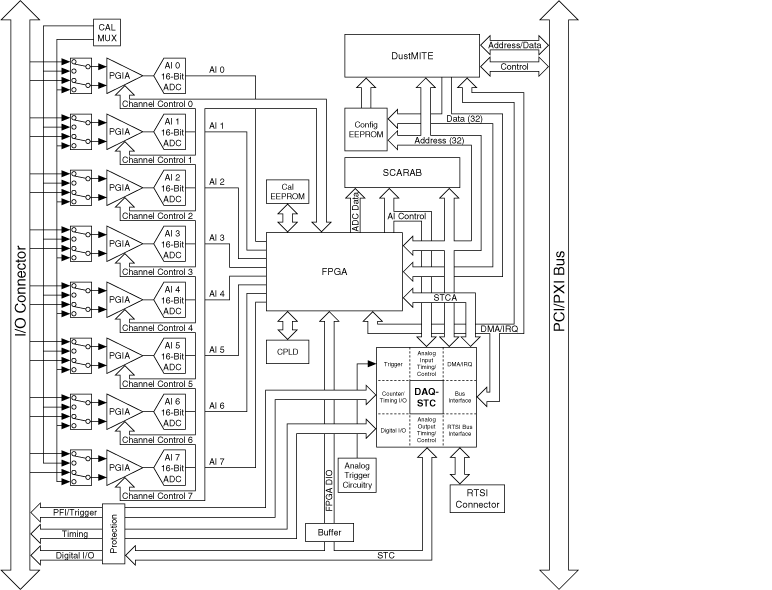

The following figure shows a block diagram for the NI 6122/6123.
 | Note AI <4..7> appear only on the NI 6123. |
