#include <BMeasureUnit.h>

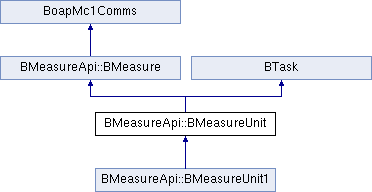

Inheritance diagram for BMeasureApi::BMeasureUnit:

Public Member Functions
	BMeasureUnit (Bool threaded=0, BUInt reqSize=2048)

virtual	~BMeasureUnit ()

BError	connect (BString device)
	Connect to a device. More...

void	disconnect ()

BString	device ()

BString	serialNumber ()

BString	info ()

BUInt	numChannels ()
	The number of channels of data. More...

void	run ()
	Threaded run mode. More...

virtual void	disconnected ()

virtual void	sendDataServe (const DataBlock &dataBlock)

virtual void	sendDataServe1 (const DataBlock &dataBlock)

virtual BError	setMeasurement (const MeasurementConfig &configMeasurement)

virtual BError	setChannelConfig (const BUInt8 &channelNumber, const ChannelConfig &channelConfig)

Public Member Functions inherited from BMeasureApi::BMeasure
	BMeasure (Bool threaded=0, BUInt reqSize=512)

BError	getNodeInfo (NodeInfo &nodeInfo)
	Get node information. More...

void	factoryReset (const BInt32 &bootLoader, const BInt32 &resetConfig)
	Factory reset. More...

BError	getStatus (NodeStatus &nodeStatus)
	Get the node status. More...

void	sendStatus (const NodeStatus &nodeStatus)
	Sends the current status. More...

void	sendTime (const BTimeUs &time)
	Sends the current time. More...

BError	setMode (const Mode &mode)
	Set the current operational mode. More...

BError	setSecureMode (const SecureMode &secureMode)
	Set the security mode. More...

BError	setSecureKey (const BString &key)
	Set the security key. More...

BError	login (const BString &user, const BString &password)
	Provides user/password information for secure connection. More...

BError	getInformation (Information &info)

BError	getInfoBlock (InfoBlock &infoBlock)

BError	getChannelConfig (const BUInt32 &channelNumber, ChannelConfig &channelConfig)

BError	setChannelConfig (const BUInt32 &channelNumber, const ChannelConfig &channelConfig)

BError	setChannelConfigFull (const BUInt64 &key, const BUInt32 &channelNumber, const ChannelConfig &channelConfig)

BError	getConfig (Configuration &config)
	Return units configuration. More...

BError	setConfig (const Configuration &config)
	Set units configuration. More...

BError	getMeasurementConfig (MeasurementConfig &measurementConfig)
	Get measurement config. More...

BError	setMeasurementConfig (const MeasurementConfig &measurementConfig)
	Set measurement config. More...

BError	getMeasurement (MeasurementConfig &measurementConfig)
	Get measurement config. More...

BError	setMeasurement (const MeasurementConfig &measurementConfig)
	Set measurement config. More...

BError	sendDataEnable (const DataSend &sendType)
	Enable the sending of data. More...

void	sendInfo (const InfoBlock &infoBlock)
	Sends an info block. More...

void	sendData (const DataBlock &dataBlock)
	Sends a data block. More...

BError	measure (DataBlock &dataBlock)
	Performs a single measurement. More...

BError	getAwgConfig (AwgConfig &awgConfig)
	Get AWG Configuration. More...

BError	setAwgConfig (const AwgConfig &awgConfig)
	Configure AWG. More...

BError	setAwgWaveform (const BUInt32 &chan, const BUInt32 &pos, const FileData &dataBlock)
	Configure AWG Arbitrary waveform. More...

BError	setAnalogueOut (const BUInt32 &chan, const BFloat32 &value)
	Set analogue output value. More...

BError	setDigital (const BUInt32 &bits)
	Set digital bits. More...

BError	getDigital (BUInt32 &bits)
	Get digital bits. More...

BError	setRelay (const BUInt32 &relayNum, const BInt32 &state)
	Set relay. More...

BError	getSwitch (const BUInt32 &switchNum, BInt32 &state)
	Get digital bits. More...

BError	filesysInfo (const BString &path, FilesysInfo &filesysInfo)

BError	filesysDelete (const BString &path, const FilesysDeleteType &deleteType)

BError	fileList (const BString &path, const BUInt32 &pos, FileInfo &fileInfo)

BError	fileOpen (const BString &name, const BString &mode, BUInt32 &handle)

BError	fileRead (const BUInt32 &handle, const BUInt32 &pos, const BUInt32 &len, FileData &data)

BError	fileWrite (const BUInt32 &handle, const BUInt32 &pos, const FileData &data)

BError	fileClose (const BUInt32 &handle)

BError	fileDelete (const BString &name)

BError	functionUnLock (const BUInt32 &unlocks, const BString &key)
	UnLock/Lock special functions. More...

BError	getBoardConfig (BoardConfig &config)
	Get the boards configuration. More...

BError	setBoardConfig (const BoardConfig &config)
	Sets the boards configuration, requires key. More...

BError	runBoardTest (const BString &test)
	Runs the given board test. More...

BError	calibrate (const CalibrateInfo &calibInfo)
	Calibrate system. More...

void	sendMessage (const BUInt32 &source, const BString &message)
	Send text messages. More...

BError	processRequest (BTimeout timeoutUs=BTimeoutForever)

virtual BError	getNodeInfoServe (NodeInfo &nodeInfo)

virtual void	factoryResetServe (const BInt32 &bootLoader, const BInt32 &resetConfig)

virtual BError	getStatusServe (NodeStatus &nodeStatus)

virtual void	sendStatusServe (const NodeStatus &nodeStatus)

virtual void	sendTimeServe (const BTimeUs &time)

virtual BError	setModeServe (const Mode &mode)

virtual BError	setSecureModeServe (const SecureMode &secureMode)

virtual BError	setSecureKeyServe (const BString &key)

virtual BError	loginServe (const BString &user, const BString &password)

virtual BError	getInformationServe (Information &info)

virtual BError	getInfoBlockServe (InfoBlock &infoBlock)

virtual BError	getChannelConfigServe (const BUInt32 &channelNumber, ChannelConfig &channelConfig)

virtual BError	setChannelConfigServe (const BUInt32 &channelNumber, const ChannelConfig &channelConfig)

virtual BError	setChannelConfigFullServe (const BUInt64 &key, const BUInt32 &channelNumber, const ChannelConfig &channelConfig)

virtual BError	getConfigServe (Configuration &config)

virtual BError	setConfigServe (const Configuration &config)

virtual BError	getMeasurementConfigServe (MeasurementConfig &measurementConfig)

virtual BError	setMeasurementConfigServe (const MeasurementConfig &measurementConfig)

virtual BError	getMeasurementServe (MeasurementConfig &measurementConfig)

virtual BError	setMeasurementServe (const MeasurementConfig &measurementConfig)

virtual BError	sendDataEnableServe (const DataSend &sendType)

virtual void	sendInfoServe (const InfoBlock &infoBlock)

virtual BError	measureServe (DataBlock &dataBlock)

virtual BError	getAwgConfigServe (AwgConfig &awgConfig)

virtual BError	setAwgConfigServe (const AwgConfig &awgConfig)

virtual BError	setAwgWaveformServe (const BUInt32 &chan, const BUInt32 &pos, const FileData &dataBlock)

virtual BError	setAnalogueOutServe (const BUInt32 &chan, const BFloat32 &value)

virtual BError	setDigitalServe (const BUInt32 &bits)

virtual BError	getDigitalServe (BUInt32 &bits)

virtual BError	setRelayServe (const BUInt32 &relayNum, const BInt32 &state)

virtual BError	getSwitchServe (const BUInt32 &switchNum, BInt32 &state)

virtual BError	filesysInfoServe (const BString &path, FilesysInfo &filesysInfo)

virtual BError	filesysDeleteServe (const BString &path, const FilesysDeleteType &deleteType)

virtual BError	fileListServe (const BString &path, const BUInt32 &pos, FileInfo &fileInfo)

virtual BError	fileOpenServe (const BString &name, const BString &mode, BUInt32 &handle)

virtual BError	fileReadServe (const BUInt32 &handle, const BUInt32 &pos, const BUInt32 &len, FileData &data)

virtual BError	fileWriteServe (const BUInt32 &handle, const BUInt32 &pos, const FileData &data)

virtual BError	fileCloseServe (const BUInt32 &handle)

virtual BError	fileDeleteServe (const BString &name)

virtual BError	functionUnLockServe (const BUInt32 &unlocks, const BString &key)

virtual BError	getBoardConfigServe (BoardConfig &config)

virtual BError	setBoardConfigServe (const BoardConfig &config)

virtual BError	runBoardTestServe (const BString &test)

virtual BError	calibrateServe (const CalibrateInfo &calibInfo)

virtual void	sendMessageServe (const BUInt32 &source, const BString &message)

Public Member Functions inherited from BoapMc1Comms
	BoapMc1Comms (Bool threaded=0, BUInt reqSize=512)

virtual	~BoapMc1Comms ()

void	setCommsMode (Bool halfDuplex)

void	setComms (BComms &comms)

void	setComms (BComms *comms)

void	setAddress (BUInt16 addressTo, BUInt16 addressFrom)

BUInt32	getApiVersion ()

BUInt32	setTimeout (BUInt32 timeoutUs)

BoapMc1Packet *	packetRx ()

virtual BError	processRx (BTimeout timeoutUs=BTimeoutForever)

Public Member Functions inherited from BTask
	BTask (const char *name="", BUInt stackSize=0, BUInt priority=1)

	~BTask ()

void	init (const char *name, BUInt stackSize=0, BUInt priority=1)

BError	start ()

void	stop ()

void	waitForCompletion ()

int	setPriority (BUInt priority)

Static Public Member Functions
static BError	findDevices (BList< BMeasureUnitDevice > &devices)
	Find available devices. More...

static BError	findDevicesUsb (BList< BMeasureUnitDevice > &devices)
	Find available devices on USB bus. More...

static BError	findDevicesNetwork (BList< BMeasureUnitDevice > &devices)
	Find available devices on Network. More...

static void	processdataBlock (const DataBlock &dataBlock, DataBlock *dataBlockOut)

Static Public Attributes
static int	blockNumChannels = 16

static int	blockNumSamples = 13

Protected Attributes
BString	odevice

NodeInfo	onodeInfo

Information	oinfo
	Instrument info. More...

MeasurementConfig	oconfigMeasurement

BArray< ChannelConfig >	ochannels

DataBlock *	odataBlock

BUInt32	osequenceNext

BUInt32	osampleCount

BUInt32	oblockCount

Bool	odisconnecting

Protected Attributes inherited from BoapMc1Comms
Bool	othreaded

BUInt32	oreqSize

BMutex	olockCall

BMutex	olockTx

BComms *	ocomms

BUInt32	oapiVersion

Bool	ohalfDuplex

BUInt32	otimeout

BUInt16	oaddressTo

BUInt16	oaddressFrom

BoapMc1Packet	opacketRxBase

BoapMc1Packet *	opacketRx

BoapMc1Packet	opacketTxBase

BoapMc1Packet *	opacketTx

BUInt	opacketRpcCmd

BSemaphore	opacketRpcSema

BSemaphore	opacketRpcDoneSema

BoapMc1Error	oerror

Protected Attributes inherited from BTask
const char *	oname

BUInt	ostackSize

BUInt	opolicy

BUInt	opriority

pthread_t	othread

Bool	orunning

Additional Inherited Members
Protected Member Functions inherited from BoapMc1Comms
virtual BError	processRequests (BTimeout timeoutUs=BTimeoutForever)

BError	packetTx (BDataChunk *chunks, BUInt nChunks, BUInt16 waitCmdReply)

BError	packetRxData (void *data, BUInt nBytes)

BError	packetRxEnd ()

Static Protected Member Functions inherited from BTask
static void *	taskFunc (void *)

Constructor & Destructor Documentation

◆ BMeasureUnit()

BMeasureApi::BMeasureUnit::BMeasureUnit	(	Bool	threaded = `0`,
		BUInt	reqSize = `2048`
	)

◆ ~BMeasureUnit()

BMeasureApi::BMeasureUnit::~BMeasureUnit ( )

virtual

Member Function Documentation

◆ connect()

BError BMeasureApi::BMeasureUnit::connect ( BString device )

Connect to a device.

◆ device()

BString BMeasureApi::BMeasureUnit::device ( )

◆ disconnect()

void BMeasureApi::BMeasureUnit::disconnect ( )

◆ disconnected()

void BMeasureApi::BMeasureUnit::disconnected ( )

virtual

Reimplemented in BMeasureApi::BMeasureUnit1.

◆ findDevices()

BError BMeasureApi::BMeasureUnit::findDevices ( BList< BMeasureUnitDevice > & devices )

static

Find available devices.

◆ findDevicesNetwork()

BError BMeasureApi::BMeasureUnit::findDevicesNetwork ( BList< BMeasureUnitDevice > & devices )

static

Find available devices on Network.

◆ findDevicesUsb()

BError BMeasureApi::BMeasureUnit::findDevicesUsb ( BList< BMeasureUnitDevice > & devices )

static

Find available devices on USB bus.

◆ info()

BString BMeasureApi::BMeasureUnit::info ( )

◆ numChannels()

BUInt BMeasureApi::BMeasureUnit::numChannels ( )

The number of channels of data.

◆ processdataBlock()

void BMeasureApi::BMeasureUnit::processdataBlock	(	const DataBlock &	dataBlock,
		DataBlock *	dataBlockOut
	)

static

◆ run()

void BMeasureApi::BMeasureUnit::run ( )

virtual

Threaded run mode.

Reimplemented from BTask.

◆ sendDataServe()

void BMeasureApi::BMeasureUnit::sendDataServe ( const DataBlock & dataBlock )

virtual

Reimplemented from BMeasureApi::BMeasure.

◆ sendDataServe1()

void BMeasureApi::BMeasureUnit::sendDataServe1 ( const DataBlock & dataBlock )

virtual

Reimplemented in BMeasureApi::BMeasureUnit1.

◆ serialNumber()

BString BMeasureApi::BMeasureUnit::serialNumber ( )

◆ setChannelConfig()

BError BMeasureApi::BMeasureUnit::setChannelConfig	(	const BUInt8 &	channelNumber,
		const ChannelConfig &	channelConfig
	)

virtual

◆ setMeasurement()

BError BMeasureApi::BMeasureUnit::setMeasurement ( const MeasurementConfig & configMeasurement )

virtual

Member Data Documentation

◆ blockNumChannels

int BMeasureApi::BMeasureUnit::blockNumChannels = 16

static

◆ blockNumSamples

int BMeasureApi::BMeasureUnit::blockNumSamples = 13

static

◆ oblockCount

BUInt32 BMeasureApi::BMeasureUnit::oblockCount

protected

◆ ochannels

BArray<ChannelConfig> BMeasureApi::BMeasureUnit::ochannels

protected

◆ oconfigMeasurement

MeasurementConfig BMeasureApi::BMeasureUnit::oconfigMeasurement

protected

◆ odataBlock

DataBlock* BMeasureApi::BMeasureUnit::odataBlock

protected

◆ odevice

BString BMeasureApi::BMeasureUnit::odevice

protected

◆ odisconnecting

Bool BMeasureApi::BMeasureUnit::odisconnecting

protected

◆ oinfo

Information BMeasureApi::BMeasureUnit::oinfo

protected

Instrument info.

◆ onodeInfo

NodeInfo BMeasureApi::BMeasureUnit::onodeInfo

protected

◆ osampleCount

BUInt32 BMeasureApi::BMeasureUnit::osampleCount

protected

◆ osequenceNext

BUInt32 BMeasureApi::BMeasureUnit::osequenceNext

protected

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ BMeasureUnit()

◆ ~BMeasureUnit()

Member Function Documentation

◆ connect()

◆ device()

◆ disconnect()

◆ disconnected()

◆ findDevices()

◆ findDevicesNetwork()

◆ findDevicesUsb()

◆ info()

◆ numChannels()

◆ processdataBlock()

◆ run()

◆ sendDataServe()

◆ sendDataServe1()

◆ serialNumber()

◆ setChannelConfig()

◆ setMeasurement()

Member Data Documentation

◆ blockNumChannels

◆ blockNumSamples

◆ oblockCount

◆ ochannels

◆ oconfigMeasurement

◆ odataBlock

◆ odevice

◆ odisconnecting

◆ oinfo

◆ onodeInfo

◆ osampleCount

◆ osequenceNext
